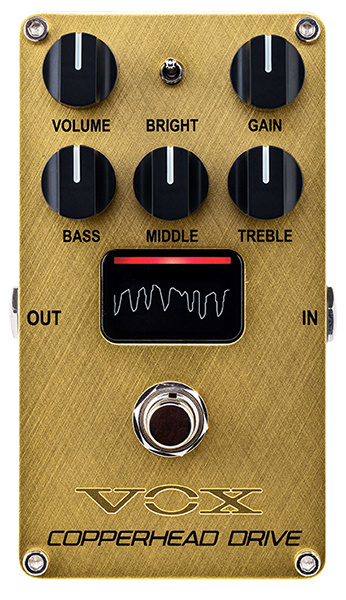

VoxVE-CD Valvenergy Copperhead Drive

Iconic amp sounds for your pedalboard. The Copperhead Drive valve distortion pedal offers the powerful crunch of British full stack amps in a compact pedal format, powered by Nutube for warm and responsive amp-like tones.

Features

• - Valve distortion pedal with the all-analog signal path
• - Powerful British crunch tones
• - Powered by Nutube
• - Three output modes for use as a pedal or preamp
• - Selectable analog cabinet simulator
• - OLED display with an oscilloscope
• - Active EQ to shape your signal

SPECIFICATIONS

INPUTS / OUTPUTS

• - INPUT jack, OUTPUT jack, DC9V jack, LINK jack

CONTROLS

• - GAIN knob, VOLUME knob, TREBLE knob, MIDDLE knob, BASS knob, BRIGHT switch, MODE switch

POWER SUPPLY

• - 1 x 9V alkaline battery or 9V center negative AC adaptor

*: The use of an AC adaptor is recommended as the unit’s power consumption is relatively high. Should you prefer to use batteries, please use the alkaline type.

BATTERY LIFE

• - Approx. 2 hours (When using the alkaline battery. This figure will vary depending on the actual conditions of use.)

DIMENSIONS (W x D x H)

• - 72 mm x 120 mm x 55 mm/2.83″ x 4.72″ x 2.17″ (Including the switch and foot rubber)

WEIGHT

• - 350 g/12.35 oz. (Excluding the battery)

INCLUDED ITEM

• - 1 x 9V battery for checking operation

ACCESSORIES (SOLD SEPARATELY)

• - AC adaptor
