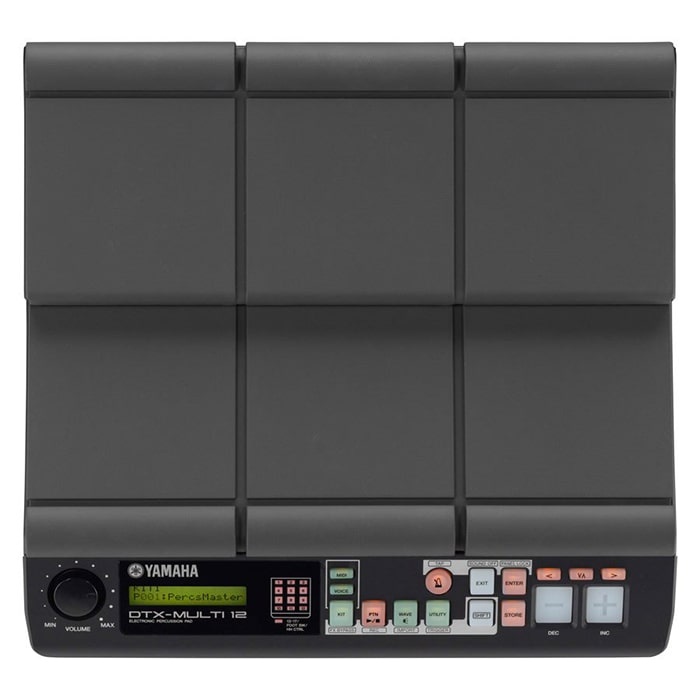

YamahaDTXM12 Electronic Percussion Pad
Show all:
Electronic Drum Kits,Drums & Percussion
Description
Read moreRead less
The Yamaha DTX-MULTI 12 is perfect for acoustic drummers adding electronics to their kit, hand percussionists needing a variety of instruments, or producers in the studio. It offers high-quality percussion sounds and rhythms, making it an ideal choice for enhancing any music setup.
SPECIFICATIONS
| Size/Weight | ||
| Dimensions | Width | 346mm |
| Height | 96mm | |
| Depth | 319mm | |
| Weight | 3.3kg | |
| Pad section | ||
| Built-in pads | 12 | |
| External inputs | 5 (three-zone x 1; monaural x 4) | |
| Tone generator | ||
| Maximum Polyphony | 64 notes | |
| Voices | Drum and percussion: 1,061 Keyboard: 216 | |
| Effects | Variation x 42 types; Chorus x 6 types; Reverb x 6 types: 5-band master equalizer | |
| Drum kits | Preset: 50 User-defined: 200 | |
| Wave memory | 100 MB (16-bit linear conversion | |
| Sequencer | ||
| Note Resolution | Quarter note / 480 | |
| Patterns | Preset patterns: 128 phrases (including 3 demo patterns) User-defined patterns: 50 phrases | |
| Sequence formats | Proprietary SMF Format 0 (for loading only) | |
| Sequence capacity | 152,000 notes | |
| Recording method | Real-time overdubbing | |
| Waves | ||
| Readable quantity | 500 | |
| Bit depth | 16 bit | |
| Wave memory | 64 MB | |
| Maximum size | Mono sample: 2 MB Stereo sample: 4 MB | |
| Sample formats | Proprietary, WAV, and AIFF | |
| Other | ||
| Display | Backlit LCD with 2 rows of 16 characters | |

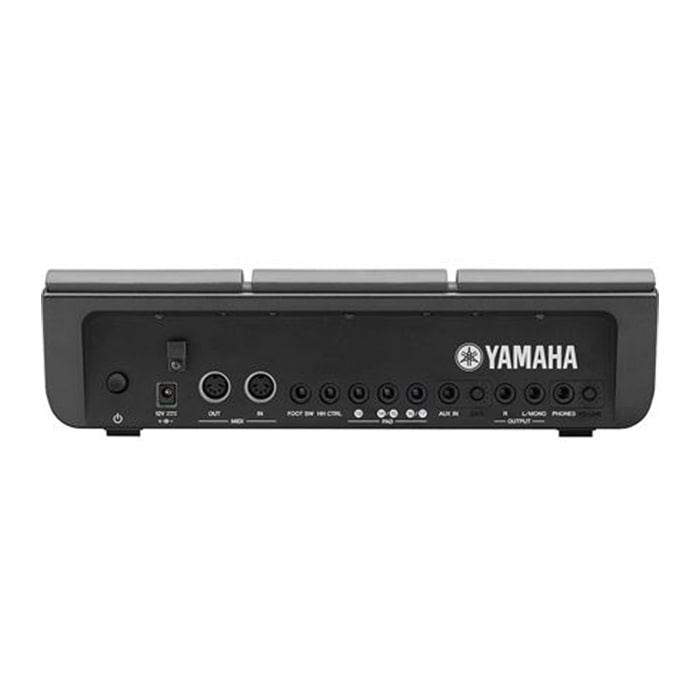

| Connectors | PAD (13) jack (standard stereo-phone plug; left = trigger, right = rim switch) PAD (14)/(15) and PAD (16)/(17) jacks (standard stereo-phone plug; left = trigger, right = trigger) HI-HAT CONTROL jack (standard stereo-phone plug) FOOT SW jack (standard stereo-phone plug) OUTPUT L/MONO and R jacks (standard phone plugs) PHONES jack (standard stereo-phone plug), AUX IN jack (standard stereo-phone plug), MIDI IN and OUT connectors, USB TO HOST port, USB TO DEVICE port, and DC IN. | |
| Power Consumption | 9W (DTXM12 and PA-5D adaptor) | |
| Package Contents | Power adaptor (PA-5D or an equivalent recommended by Yamaha), Owner's Manual , Data List booklet, DVD-ROM (Cubase AI5) | |
| Trigger section | ||
| Pad functions | Increment or decrement of drum kit, pattern, or tempo; tap tempo; switching on or off of click-track; transmission of control change messages | |
| Click-track | ||
| Tempo | 30 to 300 BPM. Tap tempo functionality | |
| Beats | 1/4 – 16/4, 1/8 – 16/8, 1/16 – 16/16 | |
| Note timing | Accent notes, quarter notes, eight notes, sixteenth notes, triplets |
