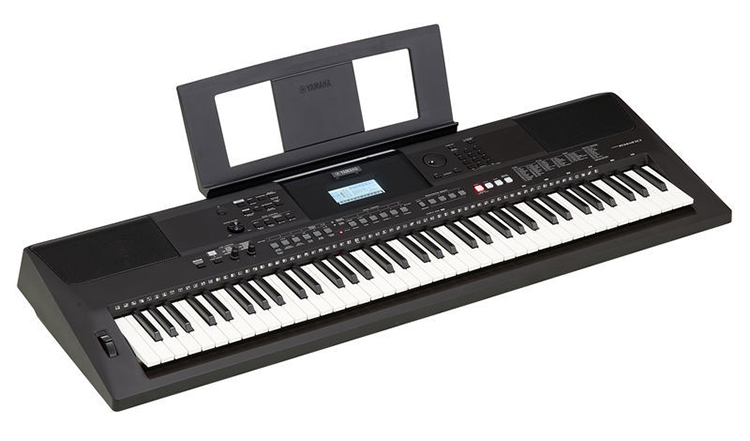

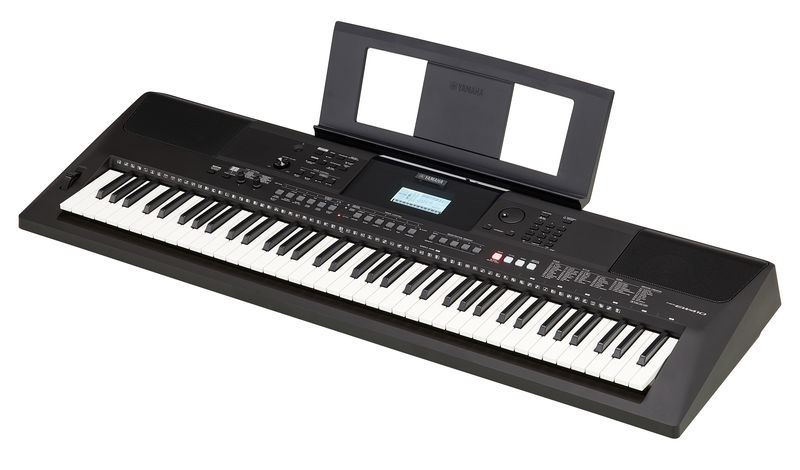

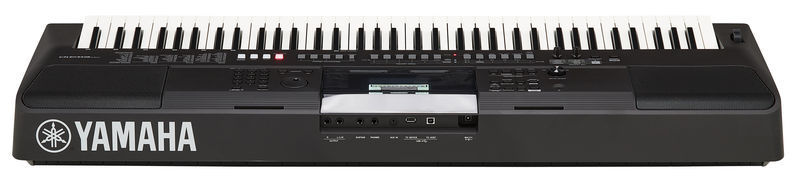

YamahaEW410 Keyboard
Show all:
Pianos & Keyboards,Portable
Description
Read moreRead less
PSR-EW410 is the best entry level key boards for performing nearly all styles of music, from the latest hits tovinyl favourites.
The PSR-EW410 features a 76 note keyboard. Both modelsinclude powerful on-board speakers and easy-to-useprofessional features like assignable Live Control knobs,Quick Sampling, Groove Creator and a USB AudioRecord.
Features
- - Quick Sampling - The possibilities are endless.
- - Groove Creator - Make music like a DJ.
- - The better an instrument sounds, the more it inspires us - Comprehensive library of 758 instrument Voices.
- - Real-time backing band tracks - 235 auto Accompaniment Styles, including 10 new local Styles and 5 contemporary Styles inherited from Genos.
- - World-wide EDM sound support your music - Groove Creator supports Western EDM (Electronic Dance Music) and various world-wide EDM grooves.
- - High performance, more powerful - 12W + 12W amplifiers power the high-definition 12 cm Bass Reflex speakers.
- - Intuitive “Live Control Knob” interface - Two assignable, real-time control knobs let you filter and adjust your sound just like an analog synthesizer.
- - Arpeggio function - The 150 Arpeggio patterns adjust and morph around the notes and chords you play on the keyboard allowing for almost limitless creativity.
- Connect to portable devices or computers for even more fun - Audio transfer through the USB TO HOST terminal**. (*For iOS device connection, refer to the "iPhone / iPad Connection Manual" **Depending on the song, the volume of the melody part may not be affected.)
- - More convenient USB TO DEVICE terminal - You can record your performances to USB Flash Drives.
SPECIFICATIONS
| PSR-EW410 |
| Color/Finish |
| Body | Color | Black |
Size/Weight | ||
| Dimensions | Width | 1,179 mm (46-3/8”) |
| Height | 138 mm (5-7/16”) | |
| Depth | 413 mm (16-1/4”) | |
| Weight | Weight | 8.4 kg (18 lb, 8 oz) not including batteries |
Control Interface | ||
| Keyboard | Number of Keys | 76 |
| Touch Response | Soft, Medium, Hard, Fixed | |
| Other Controllers | Pitch Bend | Yes |
| Control Knobs | Yes | |
| Display | Type | LCD (Liquid Crystal Display) |
| Language | English | |
| Panel | Language | English |
Voices | ||
| Tone Generation | Tone Generating Technology | AWM Stereo Sampling |
| Polyphony | Number of Polyphony (Max.) | 48 |
| Preset | Number of Voices | 758 (237 Panel Voices + 24 Drum/SFX kits + 40 Arpeggio + 457 XGlite voices) |
| Featured Voices | 1 Live! Voice, 8 Sweet! Voices, 3 Cool! Voices, 3 Dynamic Voices | |
| Compatibility | GM | Yes |
| XGlite | Yes |
Effects | ||
| Types | DSP | 10 types (assignable on control knobs) |
| Reverb | 12 types | |
| Chorus | 5 types | |
| Master EQ | 6 types | |
| Harmony | 26 types | |
| Functions | Dual/Layers | Yes |
| Split | Yes | |
| Arpeggio | 150 types | |
| Melody Suppressor | Yes | |
| Crossfade | Yes (for Internal/AUX IN) | |
Accompaniment Styles | ||
| Preset | Number of Preset Styles | 235 |
| Fingering | Multi finger | |
| Style Control | ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL, TRACK ON/OFF | |
| File Format | Style File Format (SFF) | |
| Other Features | One Touch Setting (OTS) | Yes |
| Expandability | Expansion Style | 10 |
Groove Creator | ||
| Preset | Number of Groove | 35 |
| Number of Sections | 5 (4 Sections + 1 Musical Climax/Ending) | |
| Songs | ||
| Preset | Number of Preset Songs | 30 |
| Recording | Number of Songs | 10 |
| Number of Tracks | 6 (5 Melody + 1 Style/Groove Creator) | |
| Data Capacity | Approx. 19,000 notes (when only “melody” tracks are recorded) | |
| Recording Function | Yes | |
| Compatible Data Format | Playback | SMF (Formats 0 & 1) |
| Recording | Original File Format (SMF 0 conversion function) | |
USB Audio Recorder | ||
| Recording Time (max.) | 80 minutes (approx. 0.9 GB) per Song | |
| Format | Playback | WAV (44.1 kHz, 16 bit, stereo) |
| Recording | WAV (44.1 kHz, 16 bit, stereo) | |
Quick Sampling | ||
| Sampleing Type | Normal, Oneshot, Loop | |
| Samples (Preset/Usesr) | 7 | |
| Sampling Time | Approx. 9.6 sec | |
| Sampling Sources | AUX IN | |
| Sampling Format | Original File Format (16 bit, stereo) | |
| Sampling Rate | 44.1 kHz | |
Functions | ||
| USB audio interface | 44.1 kHz, 16 bit, stereo | |
| Registration | Number of Buttons | 4 (x 8 banks) |
| Overall Controls | Metronome | Yes |
| Tempo Range | 11 – 280 | |
| Transpose | -12 to 0, 0 to +12 | |
| Tuning | 427.0 – 440.0 – 453.0 Hz (approx. 0.2 Hz increments) | |
| Scale Setting | Yes | |
| Miscellaneous | PIANO Button | Yes (Portable Grand Button) |

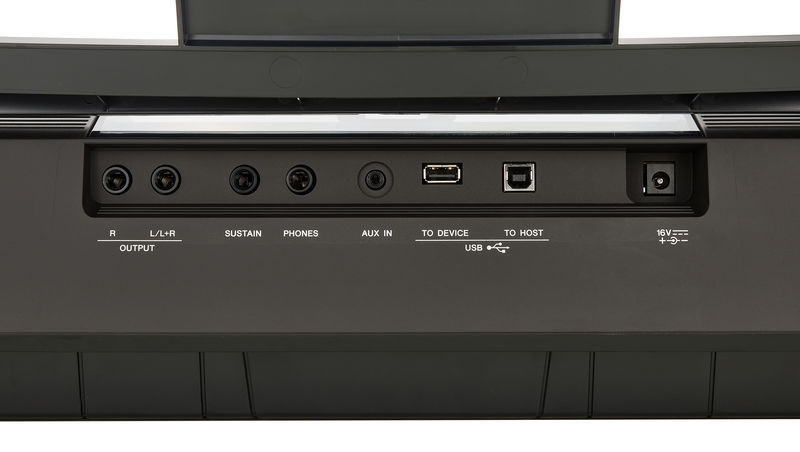

Storage and Connectivity | ||
| Storage | Internal Memory | Approx. 1.73 MB |
| External Drives | USB flash drive | |
| Connectivity | DC IN | DC IN 16 V |
| AUX IN | Yes (Stereo-mini) | |
| Headphones | x 1 | |
| OUTPUT | L/L+R, R | |
| Sustain Pedal | Yes | |
| USB TO DEVICE | Yes | |
| USB TO HOST | Yes (MIDI/Audio: 44.1 kHz, 16 bit, stereo) | |
Amplifiers and Speakers | ||
| Amplifiers | 12 W + 12 W (When using PA-300C AC adaptor) | |
| Speakers | 12 cm x 2 | |
Power Supply | ||
| Power Supply | AC Adaptors (PA-300C or an equivalent recommended by Yamaha) or batteries (Six “D” size alkaline (LR20), manganese (R20) or Ni-MH rechargeable (HR20) batteries) | |
| Power Consumption | 11 W (When using PA-300C AC adaptor) | |
| Auto Power Off Function | Yes | |
Accessories | ||
| Included Accessories | Music Rest | Yes |
| Song Book | Download from website | |
