From an unrivaled selection of top-notch musical instruments to touring-grade professional audio, Yamaha has been establishing a tradition of exceptional craftsmanship and innovation that is evident in every one of our products. The MG Series, now in its third iteration, is a prime example of this quest of design excellence. It includes some of the same technology used in high-end professional consoles, such as studio-quality preamps, potent digital processing, and a durable, dependable structure.
The MG Series offers a wide selection of compact mixing consoles with versions ranging from six to twenty channels, appropriate for a variety of users and applications. These consoles have an intuitive, simple-to-use interface. These consoles' sturdy build and adaptable design help you tailor your sound with confidence for installed, recording, or live music environments, consistently delivering peak performance and a level of sound quality and dependability unmatched in its class.
Features

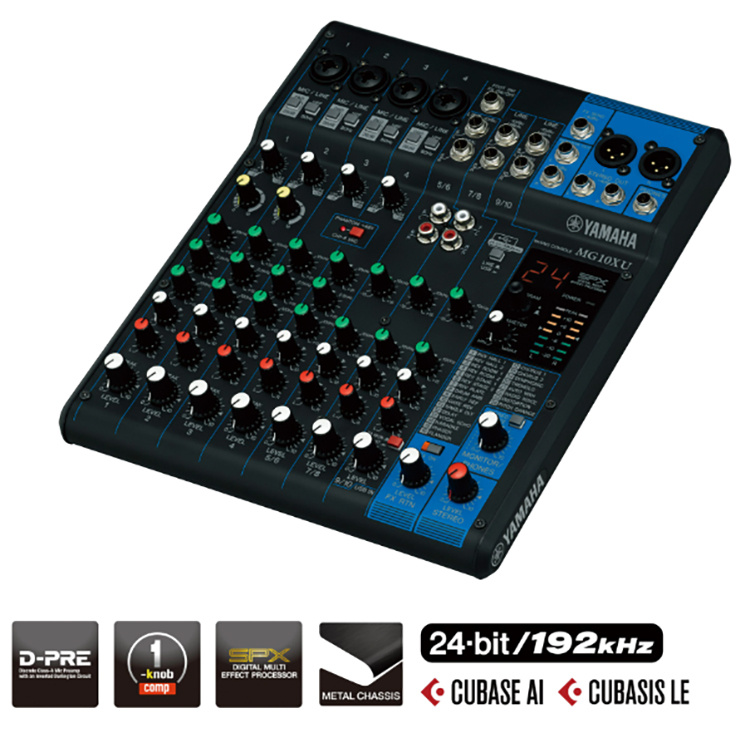

- - 10-Channel Mixing Console
- - Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
- - 1 Stereo Bus
- - 1 AUX (incl. FX)
- - “D-PRE” mic preamps with an inverted Darlington circuit
- - Knob compressors
- - High-grade effects: SPX with 24 programs
- - 24-bit / 192kHz 2in / 2out USB Audio functions
- - Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
- - Includes Cubase AI DAW software download version
- - PAD switch on mono inputs
- - +48V phantom power
- - XLR balanced outputs
- - Metal chassis
- - Dimensions(W×H×D): 244 mm x 71 mm x 294 mm (9.6"x 2.8"x 11.6")
- - Net Weight: 2.1 kg (4.63 lbs.)
SPECIFICATIONS
| Mixing capability | |
| On-board processors | SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) |
| I/O | |
| Phantom power | +48 V |
| Digital I/O | USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit |
| Input Channels | |
| Mono[MIC/LINE] | 4 |
| Stereo[LINE] | 3 |
| Output Channels | |
| STEREO OUT | 1 |
| Monitor out | 1 |
| Phones | 1 |
| AUX Send | 1 |
| Bus | Stereo: 1, AUX[FX]: 1 |
| Input Channel Function | |
| PAD | 26 dB (Mono) |
| HPF | 80 Hz, 12 dB/oct (Mono) |
| COMP | 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec |
| EQ HIGH | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving |
| EQ MID | Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking |
| EQ LOW | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
| PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping |
| Level Meter | 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB] |
| General specifications | |
| Total harmonic distortion | 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min |
| Frequency response | +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min |
| Hum & noise level | |
| Equivalent input noise | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
| Residual output noise | -102 dBu (STEREO OUT, STEREO LEVEL knob: Min) |
| Crosstalk | -83 dB |
| Power requirements | PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha |
| Power consumption | 22.9 W |
| Dimensions | |
| Width | 244 mm (9.6") |
| Height | 71 mm (2.8") |
| Depth | 294 mm (11.6") |
| Net weight | 2.1 kg (4.63 lbs.) |
| Accessories | Included Accessory: AC Adaptor, Owner’s Manual, Cubase AI Download Information, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A, Foot Switch FC5 |
| Others | Operating Temperature: 0 to +40˚C |
