Description
Read moreRead less

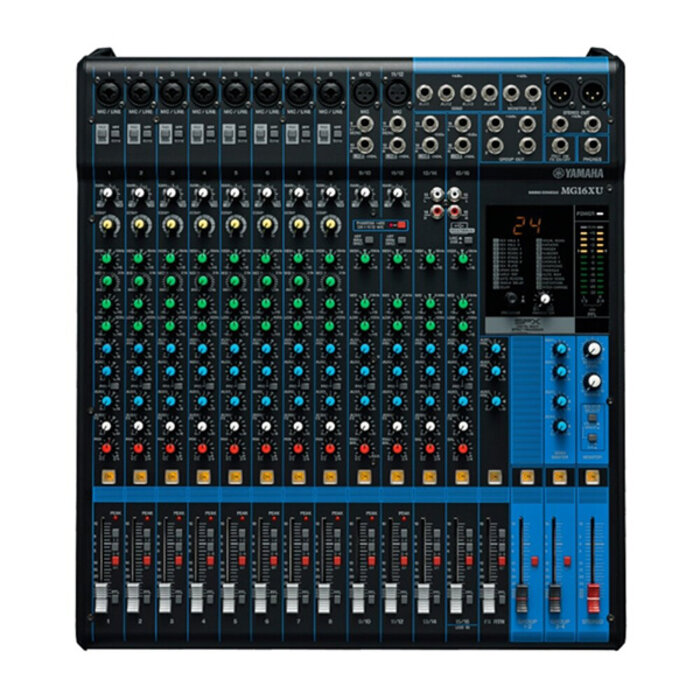

Completely redesigned for the 3rd Generation of MG mixers, 16-Channel Mixing Console: Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo) / 4 GROUP Buses + 1 Stereo Bus / 4 AUX (incl. FX)
Features
- - Head of the Class
- - D-Pre (Discrete Class-A Mic Preamps)
- - High Quality Sound Op-amp
- - Switchable Phantom Power & Pad Switch
- - Out mixer. Your Sound
- - 1-Knob Compressors
- - EQ and High-pass Filters
- - AUX/ Effect Sends/ Group
- - A variety of input / output connectors
- - Led level metering
- - Built-in SPX Digital Effects
- - Built to last
- - Metal Chassis
- - Internal Universal Power Supply
- - Rack Mount Kit Included
- - XLR connector
- - Create, record listen
- - 24-bit / 192kHz 2-in / 2-out USB Audio Interface Function
- - Cubase Al

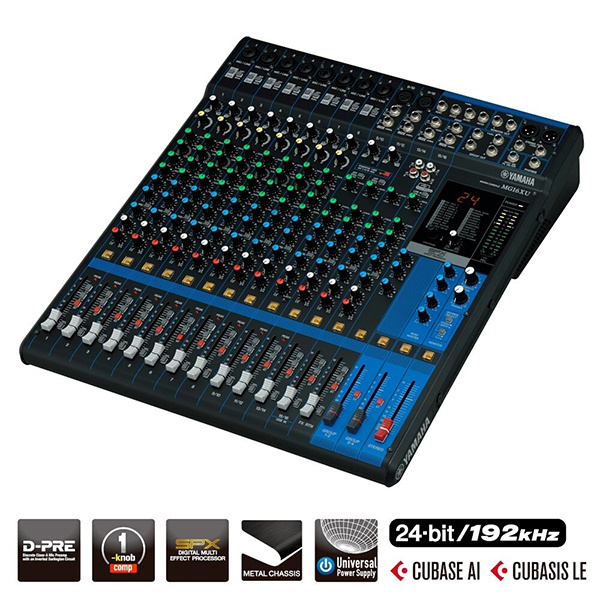

Built with high quality materials and rugged metal chassis this feature rich mixer is suitable for portable rigs or permanent installations, the sound quality delivered by the MG16XU is impressive, the D-PRE preamps will ensure that the tone coming from your instrument or mic is faithfully reproduced.
SPECIFICATIONS
| Outline | ||
| Mixing capability | On-board processors | SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) |
| I/O | Phantom power | +48 V |
| Digital I/O | USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit | |
| Input Channels | Mono[MIC/LINE] | 8 |
| Mono/Stereo[MIC/LINE] | 2 | |
| Stereo[LINE] | 2 | |
| Output Channels | STEREO OUT | 2 |
| MONITOR OUT | 1 | |
| PHONES | 1 | |
| AUX SEND | 4 | |
| GROUP OUT | 4 | |
| Bus | Stereo: 1, GROUP: 4, AUX: 4 (incl. FX) | |
| Input Channel Function | PAD | 26 dB (Mono) |
| HPF | 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) | |
| COMP | 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec | |
| EQ HIGH | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving | |
| EQ MID | Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking | |
| EQ LOW | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | |
| PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping | |
| Level Meter | 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] | |
| Total harmonic distortion | 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min | |
| Frequency response | +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min | |
Hum & noise level | Equivalent input noise | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
| Residual output noise | -102 dBu (STEREO OUT, STEREO master fader: Min) | |
| Crosstalk | -78 dB | |

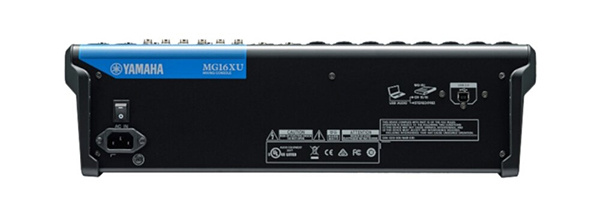

| Power requirements | AC 100 – 240 V, 50 / 60 Hz | |
| Power consumption | 30 W | |
| Dimensions | W | 444 mm (17.5") |
| H | 130 mm (5.1") | |
| D | 500 mm (19.7") | |
| Net weight | 6.8 kg (15.0 lbs.) | |
| Accessories | Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Rack-mount kit, Optional Accessory: Foot Switch FC5 | |
| Others | Operating Temperature: 0 to +40˚C |
